Elite Series Power Amps, Preamps & Options


Elite Series Components

2014 SPECIAL
FREE SHIPPING

 with the purchase of an Elite Power Amp and Elite4 Preamp

Elite80 - Stereo Push-Pull Power Amplifier

Elite80M - Monoblock Parallel Push-Pull Power Amp

Elite40SE - Stereo Single Ended Power Amp

Elite4 - Stereo RIAA Phono/Line Stage Preamplifier

EXCELLENT  SOUND QUALITY
EXCELLENT  BUILD  QUALITY
EXCELLENT  AFFORDABILITY

Treat yourself to the Unique Music Listening Pleasure
 provided by these Top Quality NOS/NIB
 JAN 6AV5GA/6FW5 power output tubes.


Jeff Brown from Affordable Audio reviews an Elite80


Francisco Duran from Positive Feedback reviews an Elite80

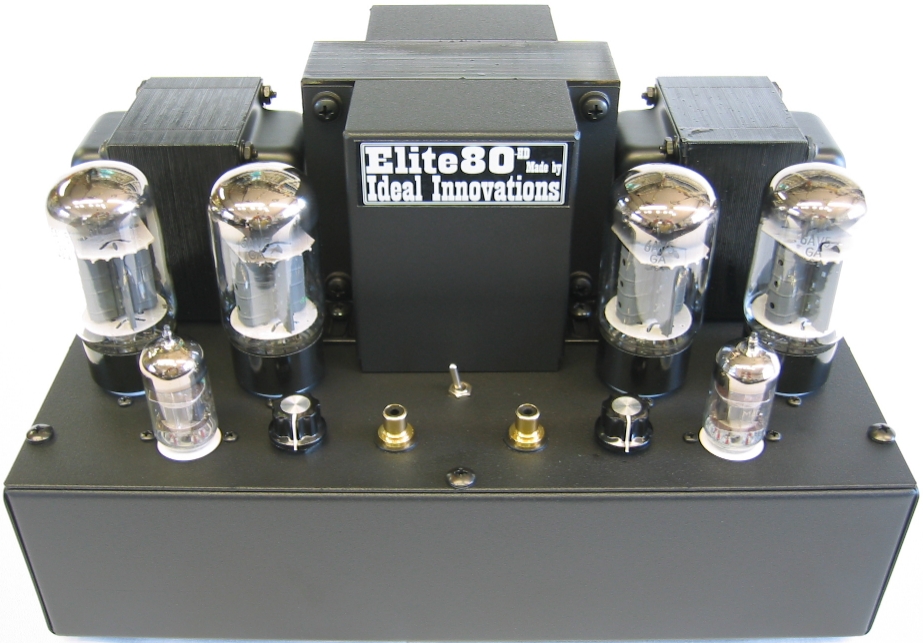

Elite80 - Stereo Amplifier - $1199.00
Click Here for Complete Specs                        Base Price

Contact Us about occasional special Elite80 pricing!

Elite80M - Monoblock Amp - $1399.00
Click Here for Complete Specs                       Base Pric
e
We are now taking orders for this amplifier.

 Elite40SE - SET Amplifier - $1499.00
  Click Here for Complete Specs                   Base Price

SEE MORE Elite80 PHOTOS
Click Here


Contact us now for details about available options


(Click photos for more detail)

(Some amplifiers at various stages of completion)


Elite80 & Elite40SE CUSTOMIZING OPTIONS
(Click on Option # for more info on each)

OPTION 1
- Dual Volume Potentiometer & Balance Control - $195.00.
OPTION 2 - L&R combined sub-woofer output jack - $145.00.
OPTION 3 - Stereo Headphone Jack, Non-Switching, with load resistors - $155.00.
OPTION 4 - Stereo Headphone Jack, with Speaker Switching & load res. - $225.00.
OPTION 5 - Second Set of RCA Rear Input Jacks & Switch - $195.00.
OPTION 6 - 3 Position Input Selector Switch and 3 Pairs RCA Jacks - $285.00.
OPTION 7 - Second set of 4 Ohm Output Jacks - rear deck mounted - $155.00.
OPTION 8 - Output Impedance 4-8-16 Ohm Selector Switches - rear mounted - $295.00.
OPTION 9 - R.F. Remote Control for Power, Volume, & Standby or Headphones - $499.00.
OPTION 10 - Oak Hardwood Front Panel - (Other hardwood options available) - $145.00.
OPTION 10A - Deluxe Hardwood Base - many woods & colors to choose from - $299.00.
OPTION 11 - Spare tube set of 2 Matched pairs of 6AV5GA & 2 of 6N2P or 12AX7 - $199.00.
OPTION 12 - Extended Warranty - Not including spare tube set - 2 Year Total - $119.00.
OPTION 13 - Extended Warranty - Includes 1 Tube set - 5 Year Total - $249.00.
OPTION 14 - Extended Warranty - Includes 2 Tube sets - 25 Year Total - $399.00.
OPTION 15 - An Elite80, Fully Loaded, Super Deluxe - "Elite80SD" - $999.00.
OPTION 16
- International, 100,120,200,240Volt 50/60HZ Power Supply - $499.00.

You don't see it on the option list?
Just ask us about your idea - we can do it.

PLEASE NOTE:
Prices for all
"OPTIONS" are additional to the advertised
 or base price of the Elite Series amplifiers.



The 6AV5GA / 6FW5 Blog

 We really like the performance and sound quality of the Philips-ECG (Sylvania) 6AV5GA that we use in the Elite80, Elite80M and Elite40SE amplifiers.  From info we have gathered these are actually an upgraded military version of 6FW5's labeled as 6AV5GA's.  The 6FW5 is a much heavier dissipation tube than your standard 6AV5GA.  This heavy duty version of the 6AV5GA also has the top getter which silvers uniformly only the top portion of the envelope, making the tube's appearance also very cool looking.  This 6AV5GA is a very well manufactured tube, made in the USA, by Sylvania in Emporium, PA in 1984.  They are a very robust design with cathodes larger than a KT88s.  Originally made for demanding military applications these ideal power tubes provide unrivalled sonic performance in the correct audio circuit, at least in our opinion, and we believe yours too once you listen with this amp.

So several years back we did some R&D of our own just to see what could be done with these things.  We found a small stash of these Philips-ECG (Sylvania) 6AV5GAs and got busy in the lab.  And with a good number of hours and a number of circuits later we began to see - actually hear - what this deflection tube hype was all about.

Operating these output tubes modestly as we do makes an amplifier that not only sounds very nice, but will also last a long, long time.  In fact we have recently had the opportunity to inspect and upgrade one of the first Elite80's we built, and with over 5000 hours of reported running time on these Sylvania 6AV5GA's there was no sign of sonic degradation, so we sent it home with the original tubes still going strong!!  If you look around on the web youll find an ever expanding, near cult, listener following of horizontal sweep tubes and interest seems to be spreading.

To make a long story short, these particular deflection tubes are SIMPLY AMAZING.  In our Elite80 & Elite40SE amplifiers they display everything one wants in full range clean music reproduction.  We have since secured a large number (actually 1000's) of these NOS premium quality 6AV5GAs so there's no need to worry about the supply.  We have the ability to maintain and support your investment for years.

Our 25 Year Extended Warranties clearly demonstrate
 our level of confidence in the Elite Series Components.

SOME INFO LINKS ON 6FW5 & 6AV5GA
(Practices at these links are not endorsed by Ideal Innovations-just observed)

Testing the 6AV5GA & 6FW5

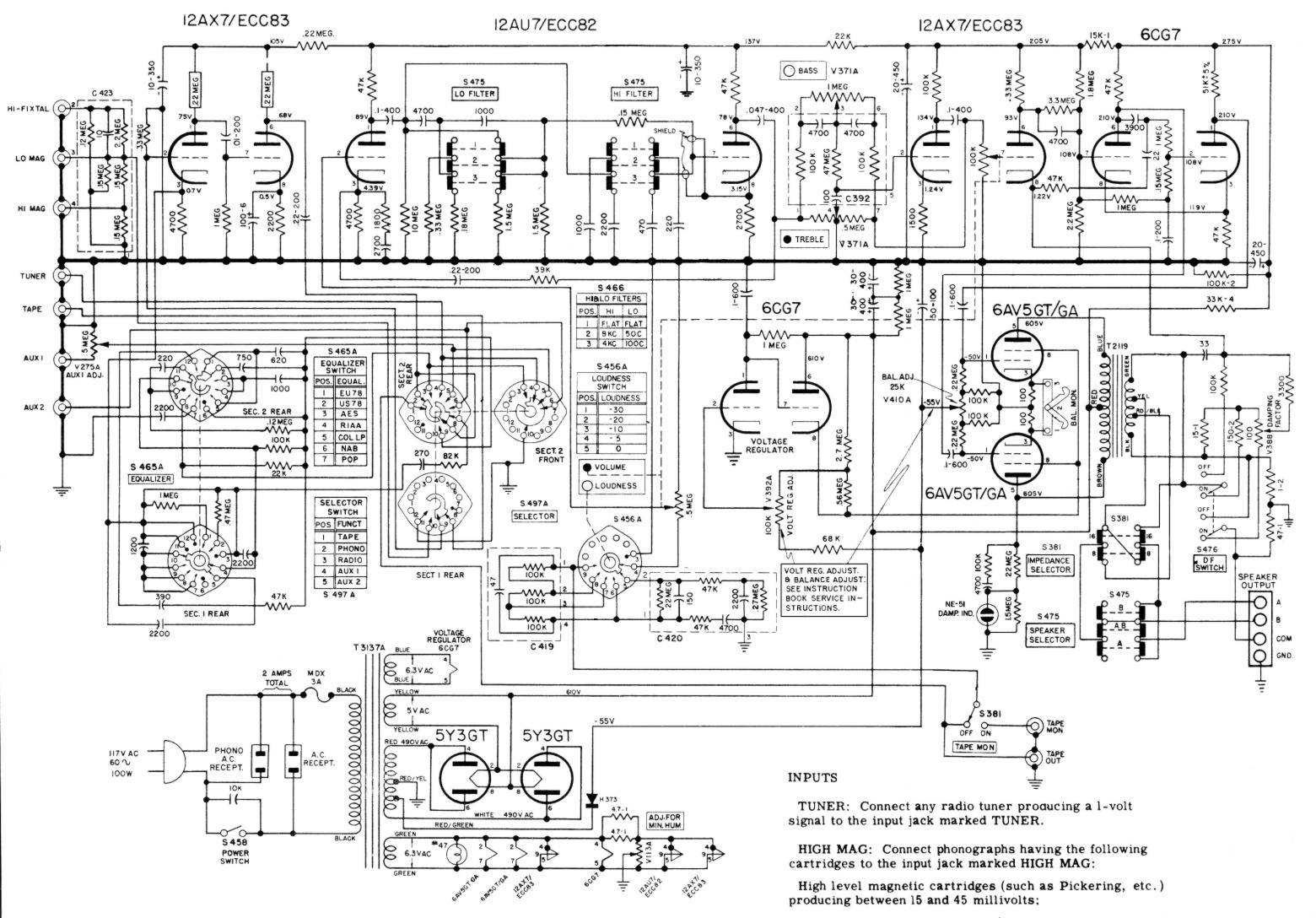

Bogen DB-130 Amplifier

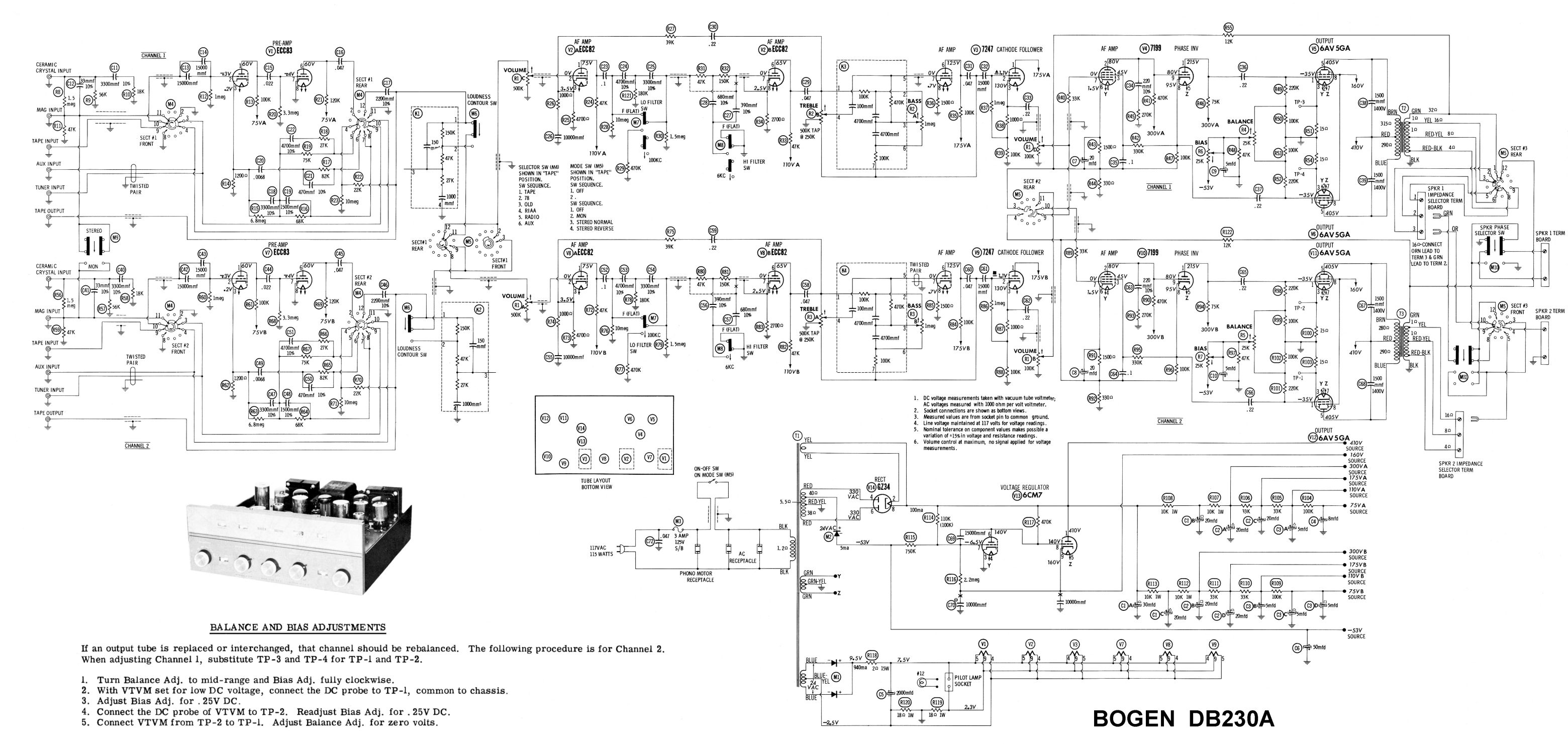

Bogen DB-230A Amplifier
Bogen DB-230A Amplifier
AudioKarma Article1
Audio Asylum Article1
McIntosh Labs Article1

Sylvania 6AV5GA Datasheet

Tungsol 6FW5 Datasheet
General Electric 6FW5 Datasheet

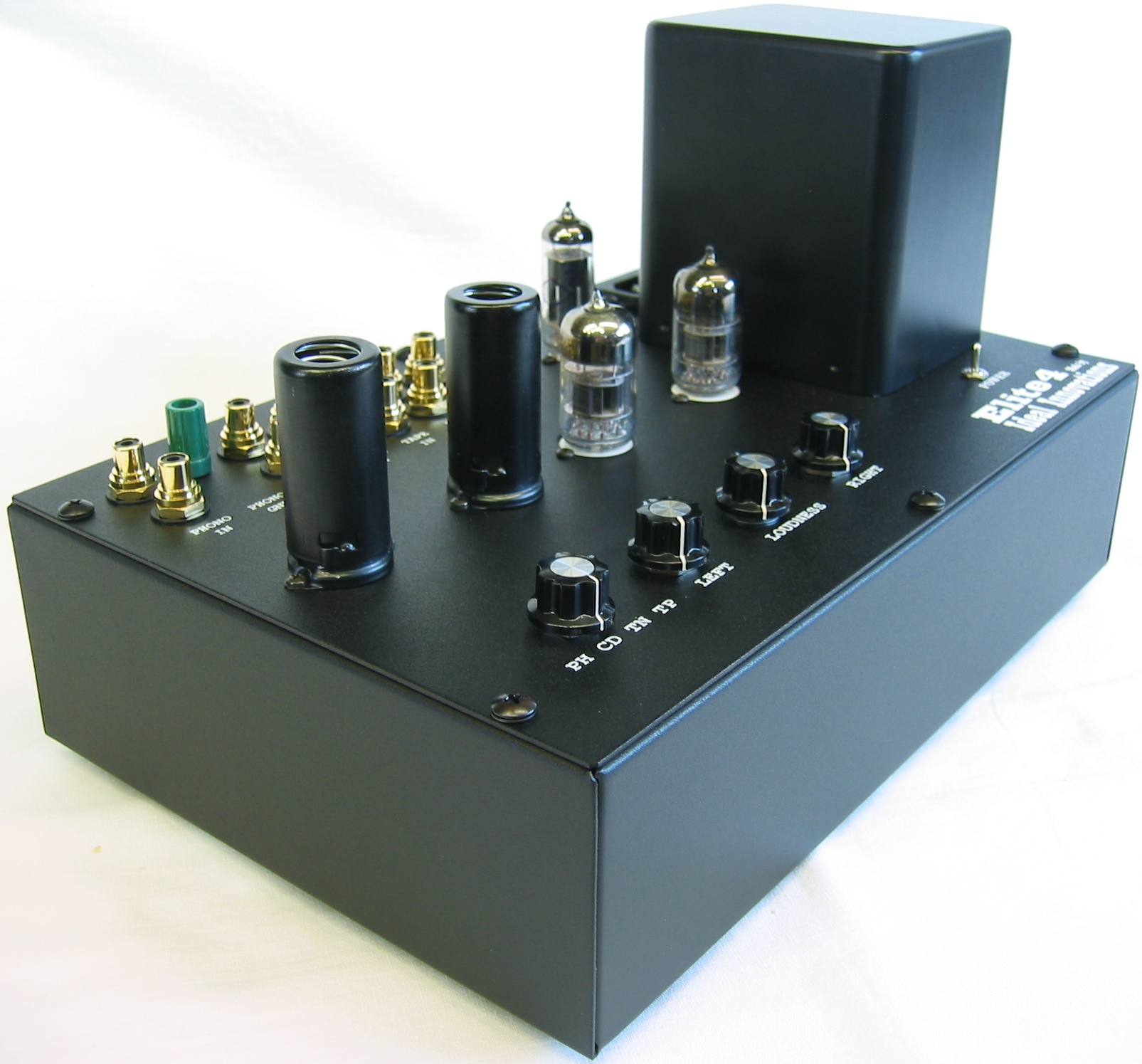

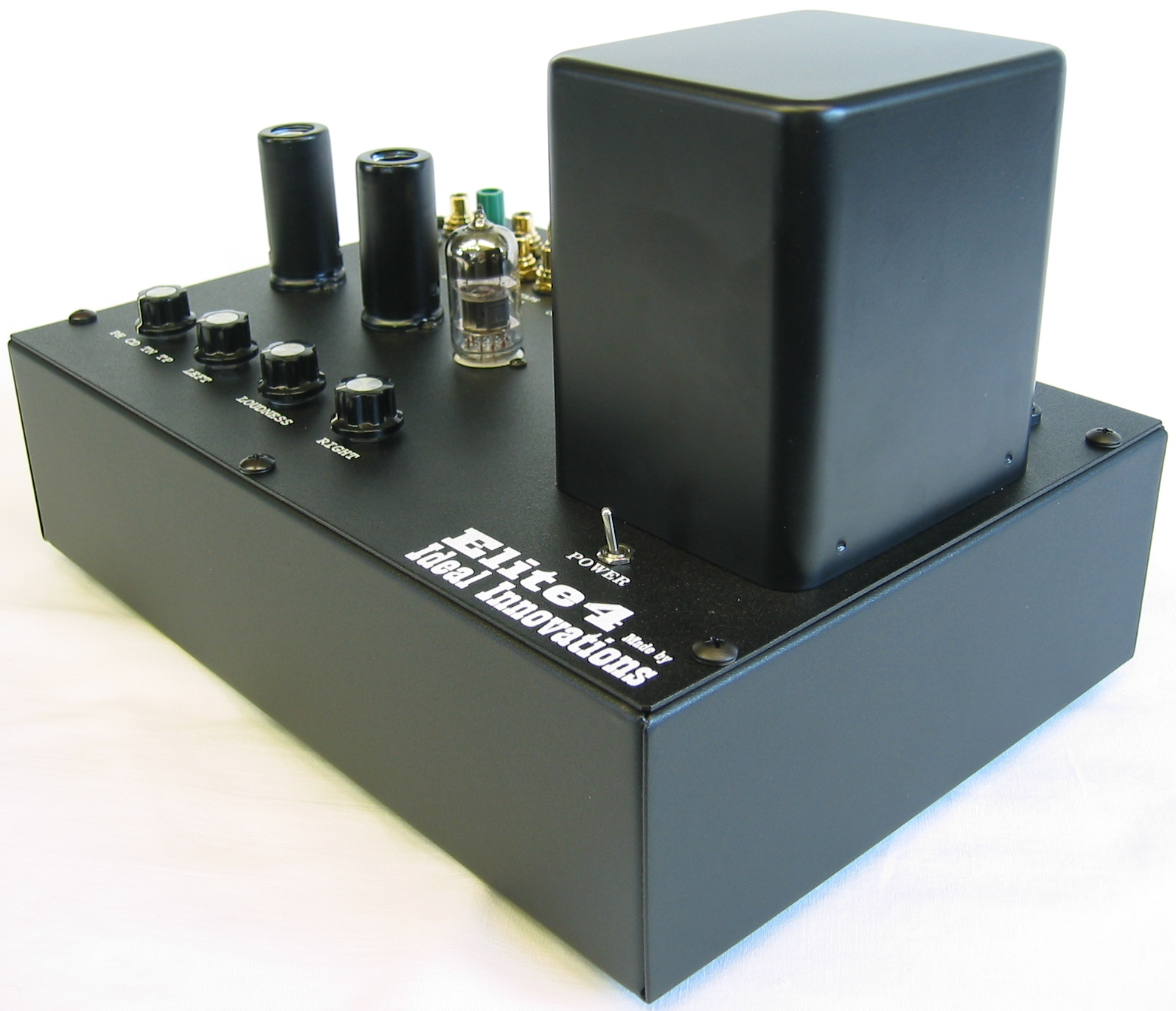

Elite4  STEREO PREAMPLIFIER

Elite4 - Preamplifier - $1999.00
Click Here for Complete Specs       Base Pric
e

SEE MORE Elite4 PHOTOS
Click Here





SHIPPING COSTS
MOST USA and CANADIAN DESTINATIONS
Elite Series-$95.00 per unit via Canada Post / USPS.
Please inquire for other shipping methods and prices.

Please Note: Ideal Innovations reserves the right to make design changes or
 improvements without the obligation to revise prior versions.  All specifications are subject to change without notice.  The information on this page applies to these particular units only as some models will vary and may not be exactly as shown.
